Step 1

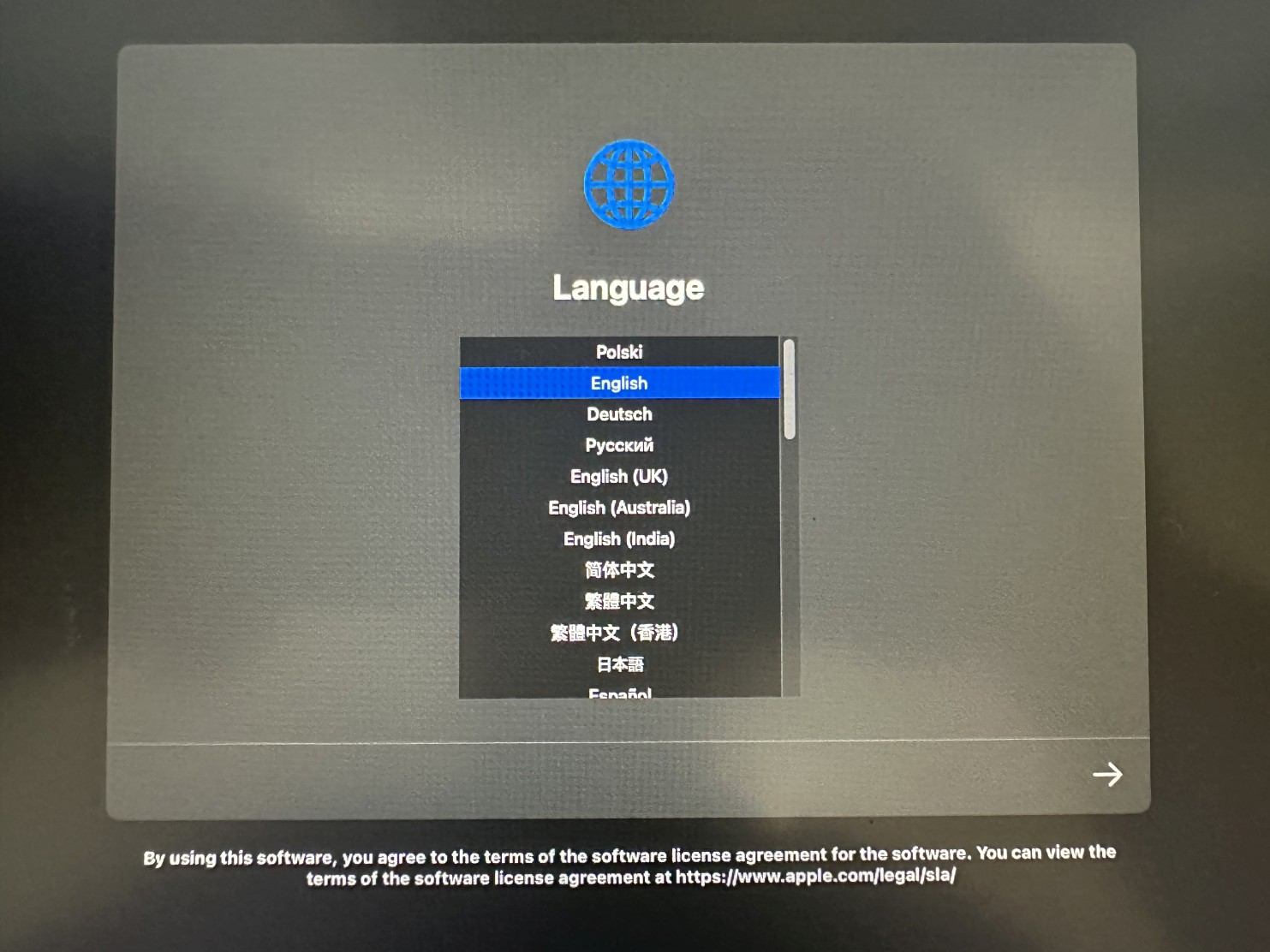

Press Command + R keys combination (or ALT + R key on Windows keyboard) on startup to launch recovery mode. You might be prompted to choose language. Simply choose any language from the list and click an arrow on the right to continue.

Please note: If you don't have recovery mode installed it will be automatically downloaded from the web.

Step 2

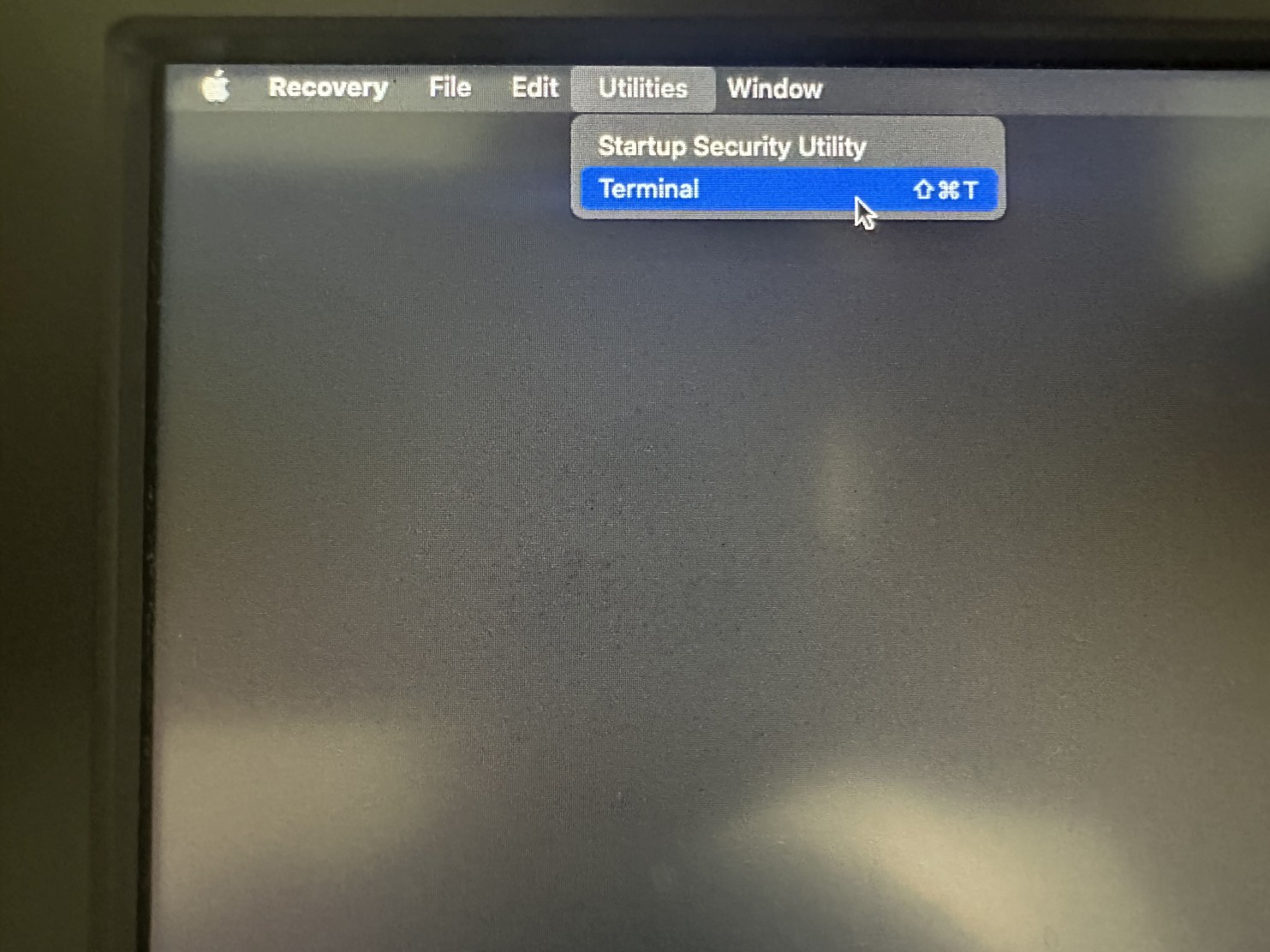

Choose Utilites then Terminal from Finder menu.

Step 3

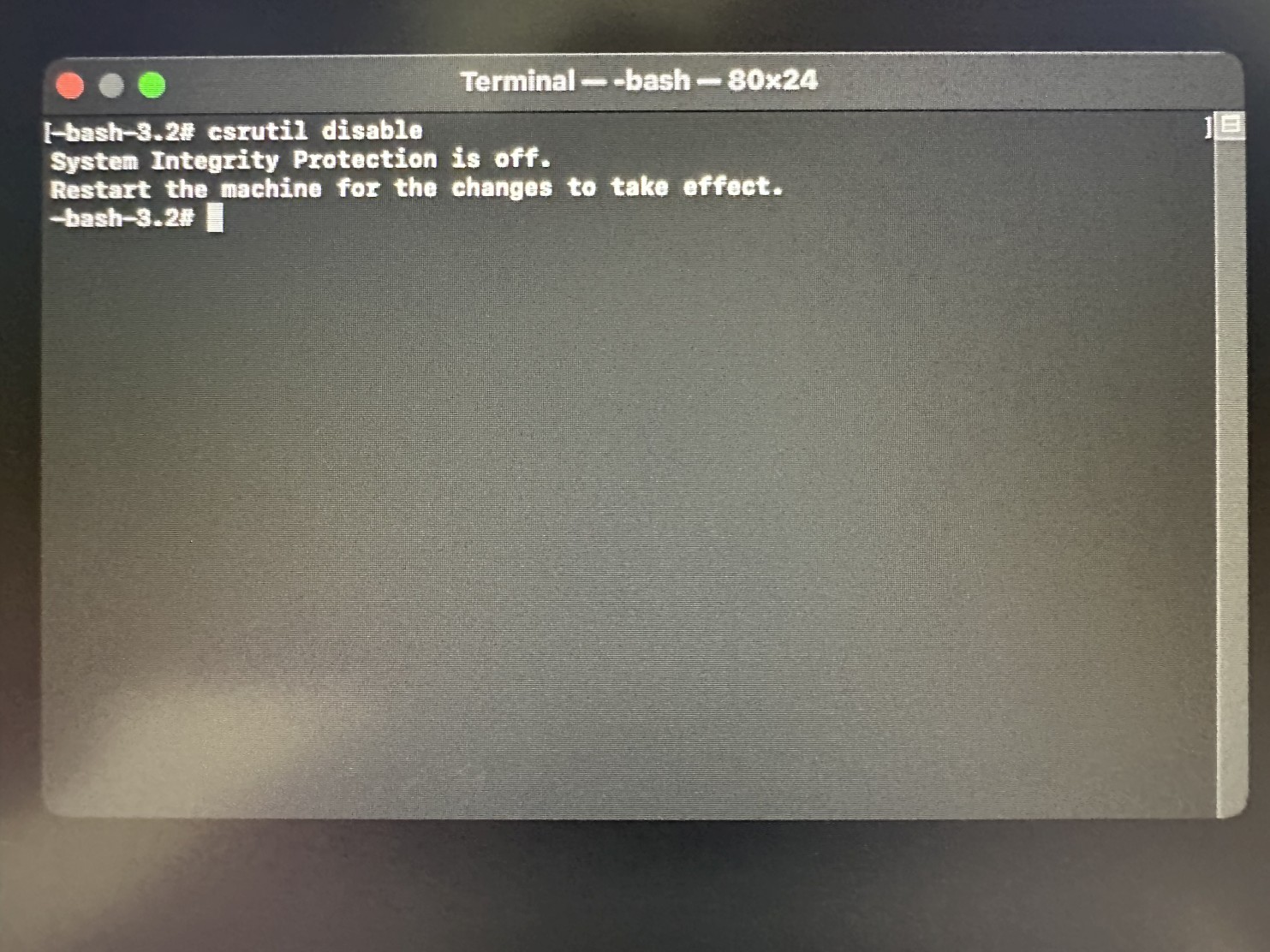

Type a following command in the Terminal window:

csrutil disable

and press ENTER.

Step 4

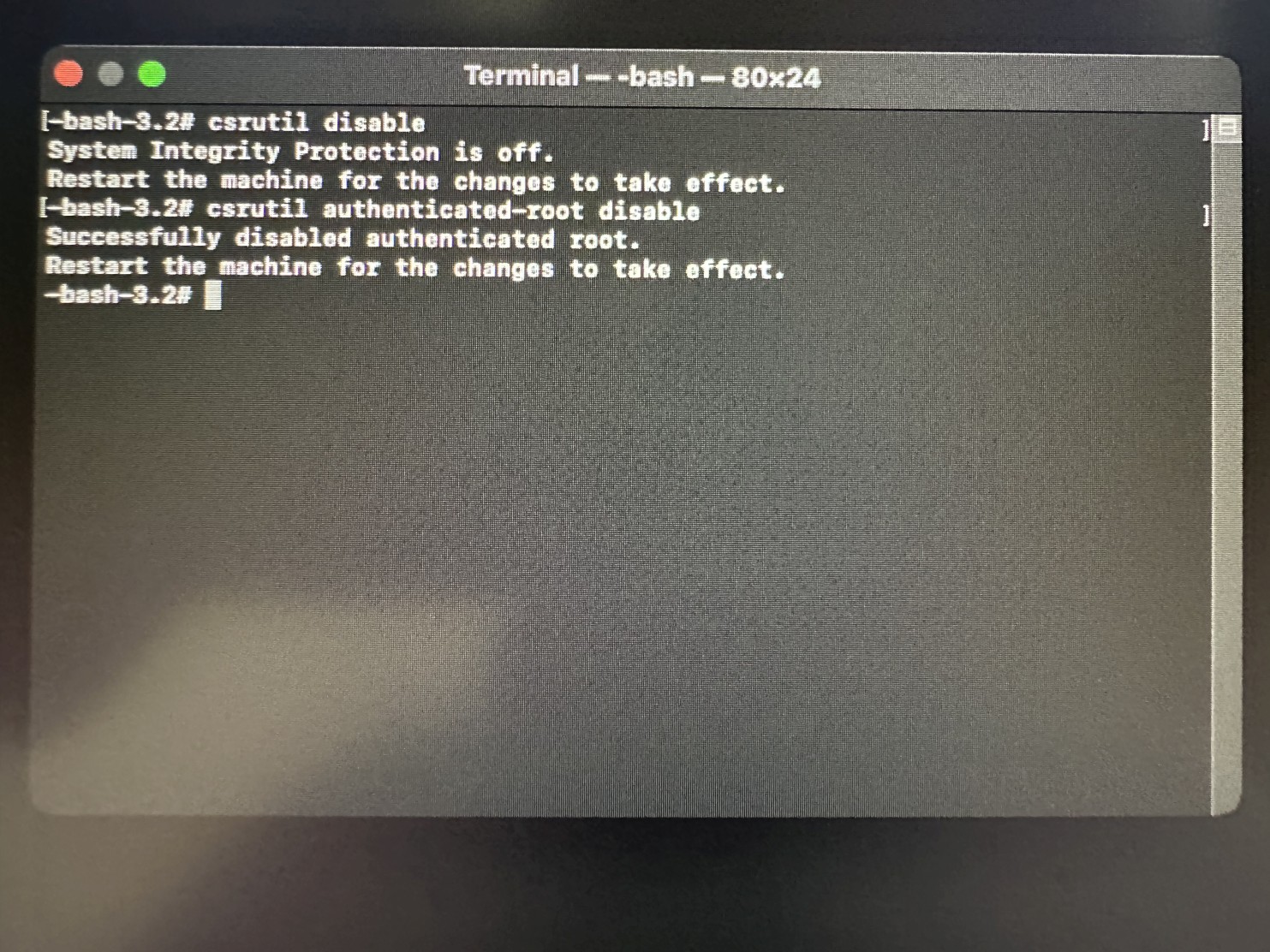

Now type:

csrutil authenticated-root disable

and press ENTER in the Terminal window.

This will fully disable SIP (System Integrity Protection) which is needed to enable patches for the eGPU. Make sure not to reset NVRAM otherwise these steps would have to be redone.

Step 5

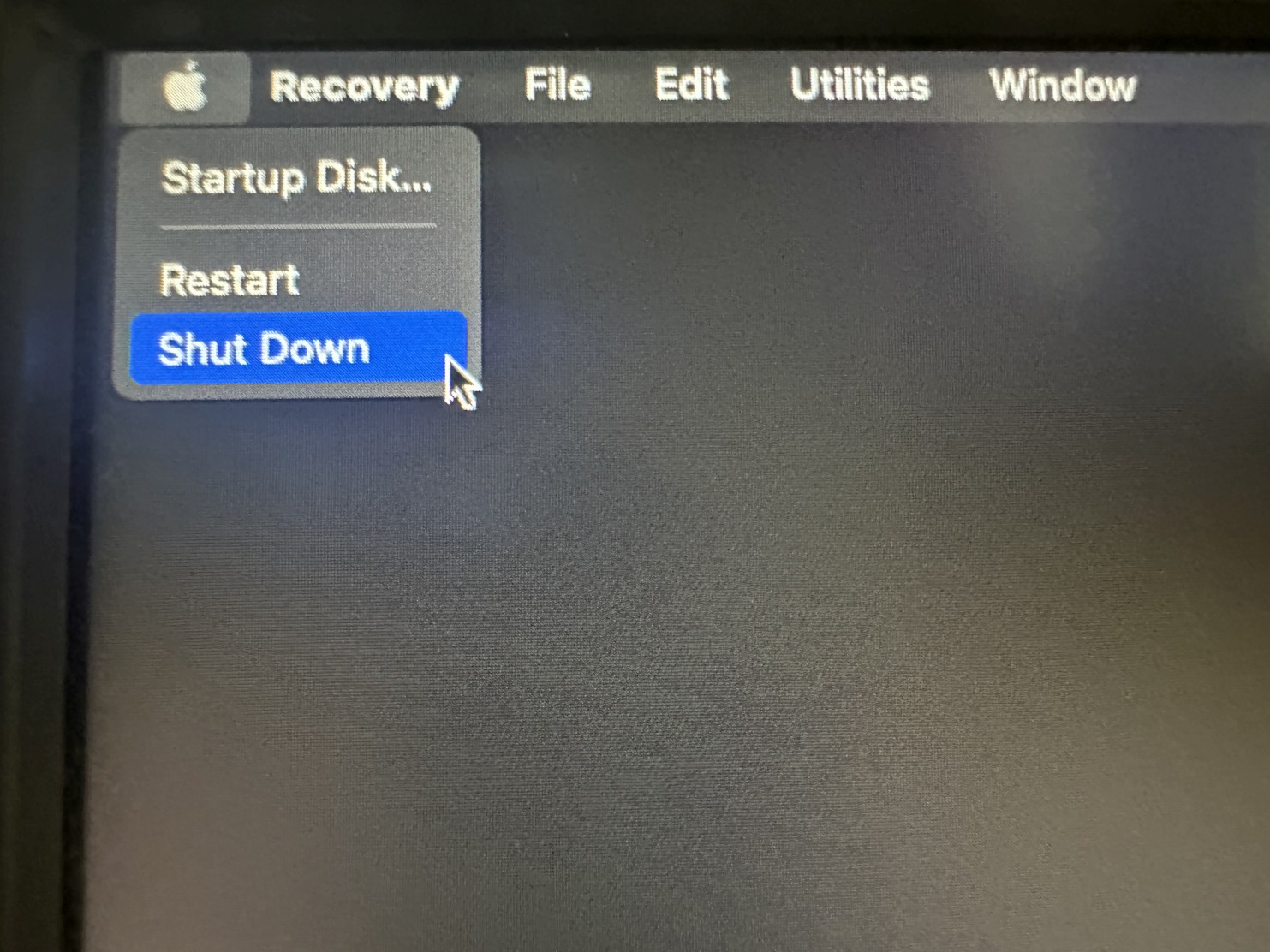

Close the Terminal window. Click Apple logo and choose Shut Down to turn off the computer.

Step 6

Connect your eGPU, but do not connect any displays to it yet.

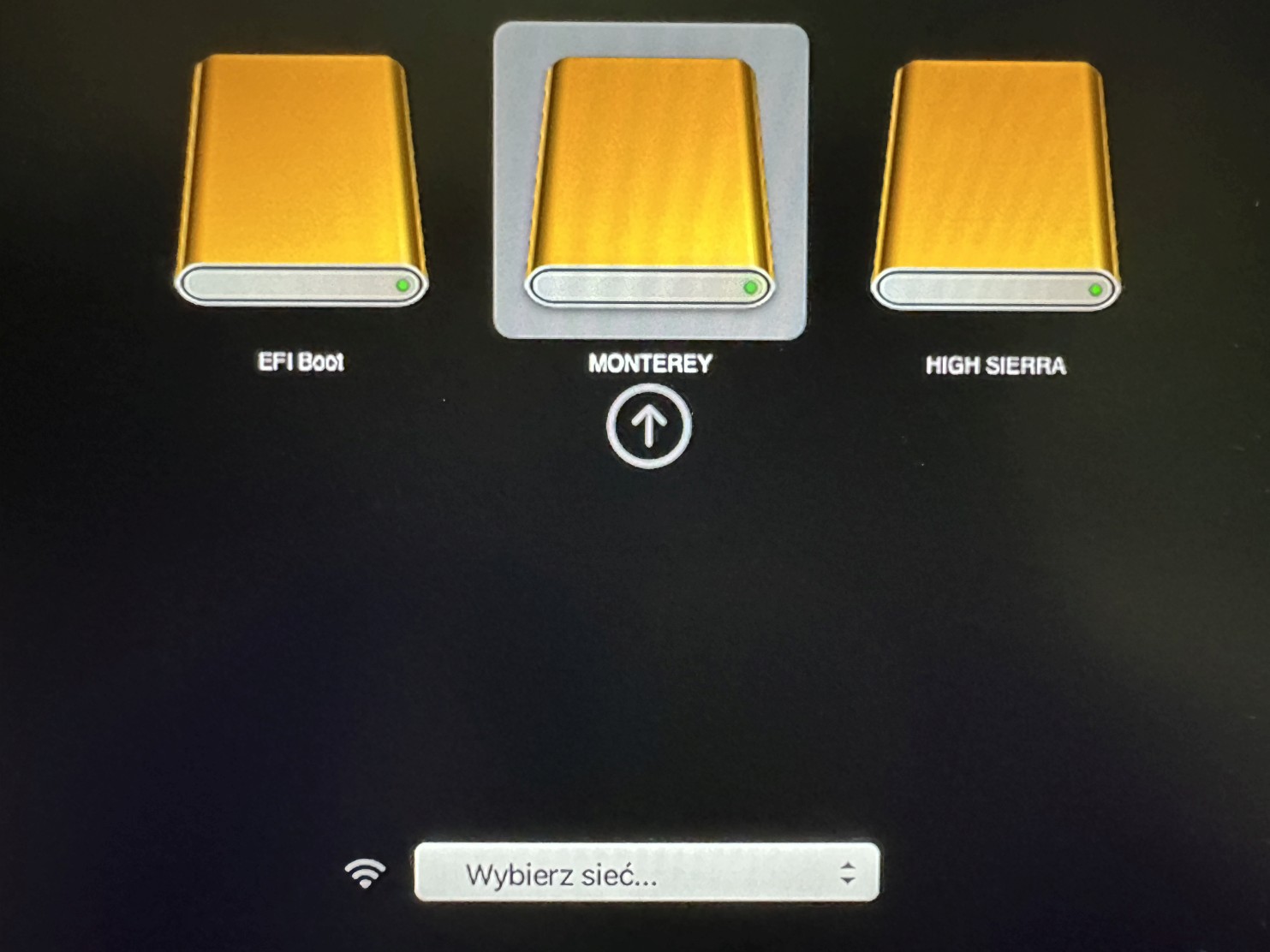

Start the computer again and press and hold Option (or ALT on Windows keyboard) to launch boot picker. Choose macOS Monterey disk from the list by clicking an arrow under it.

Step 7

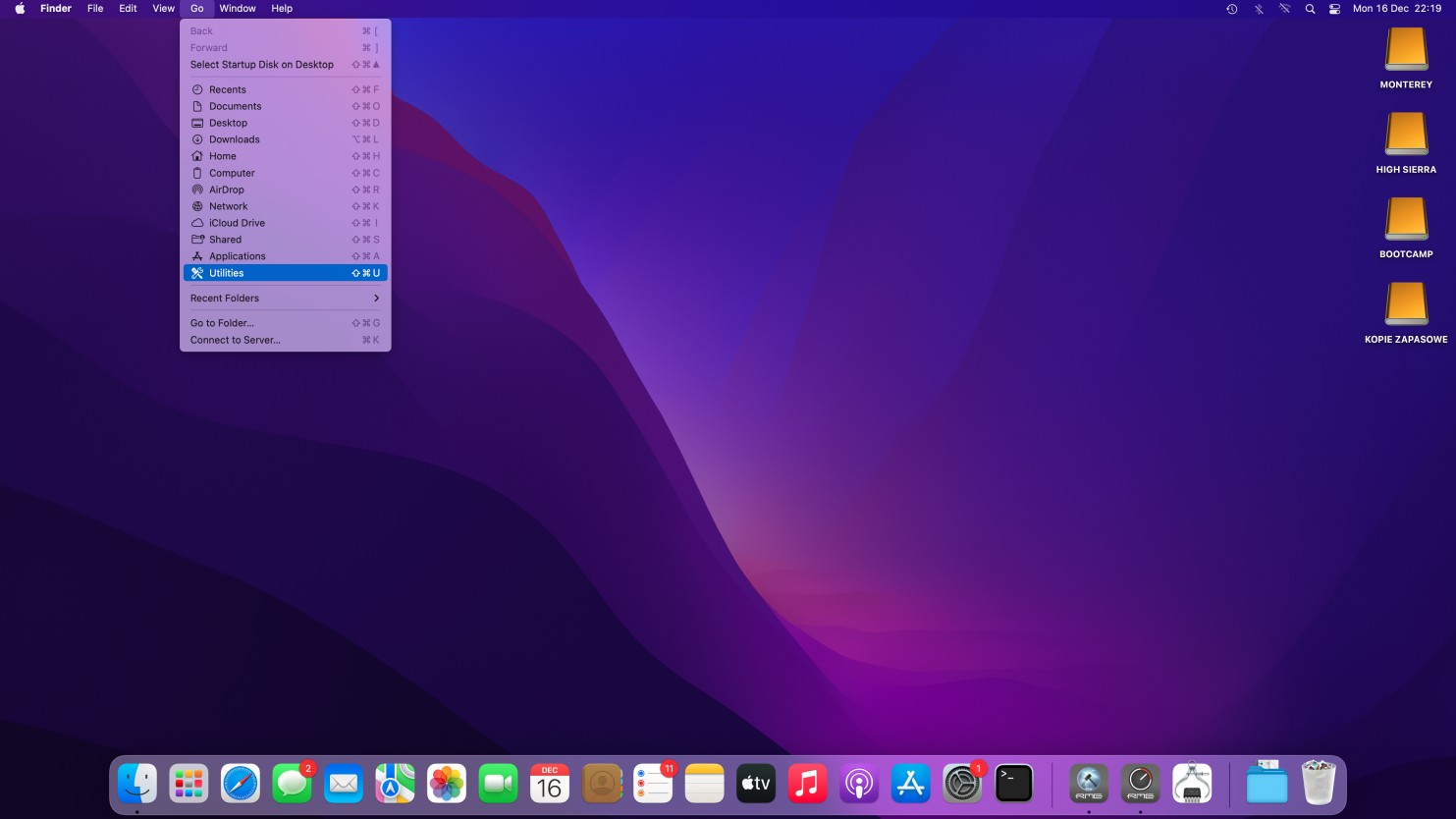

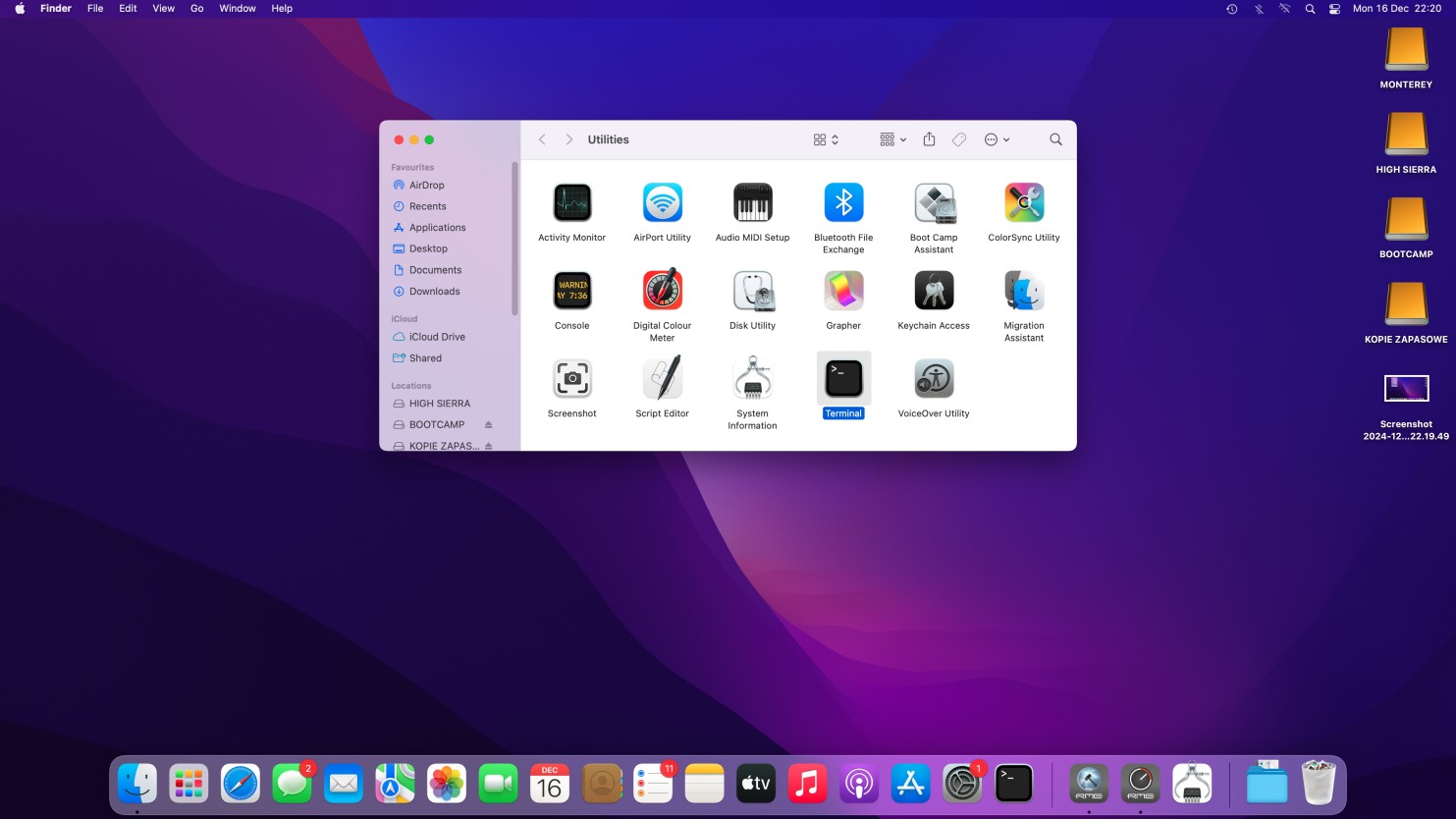

From Finder menu on top choose Go then Utilities.

Step 8

Step 9

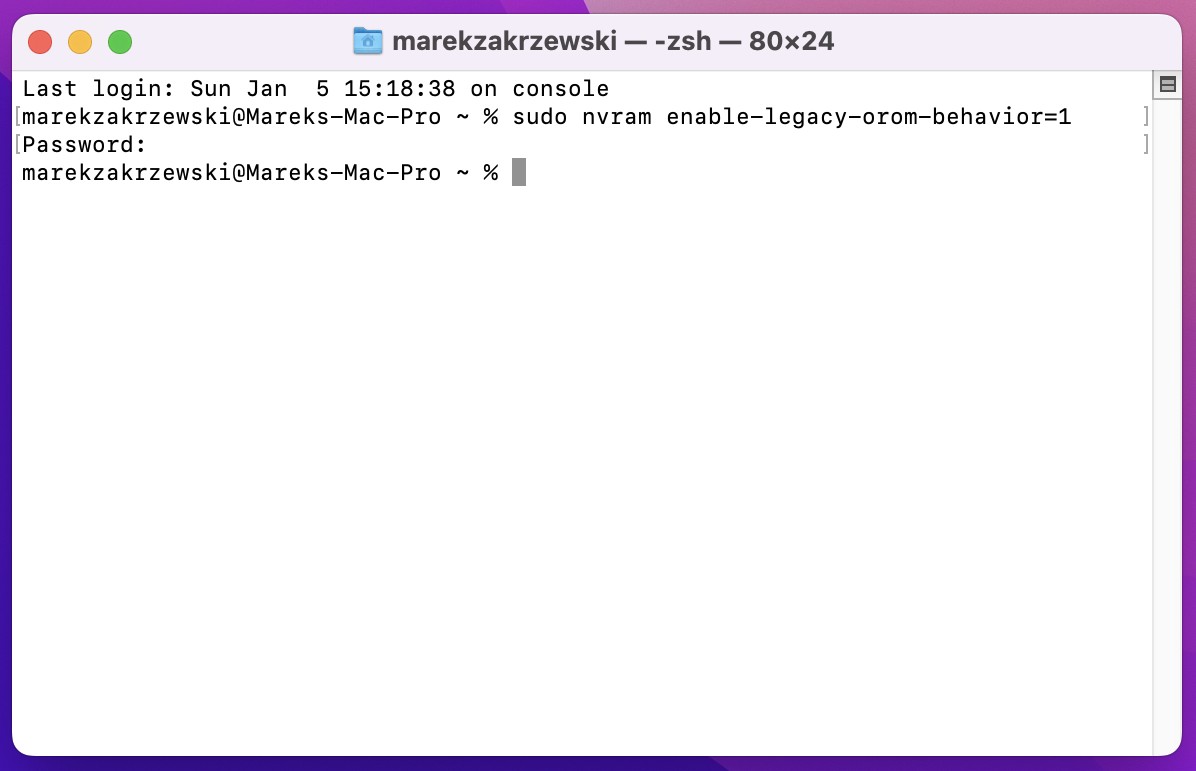

Type a following command:

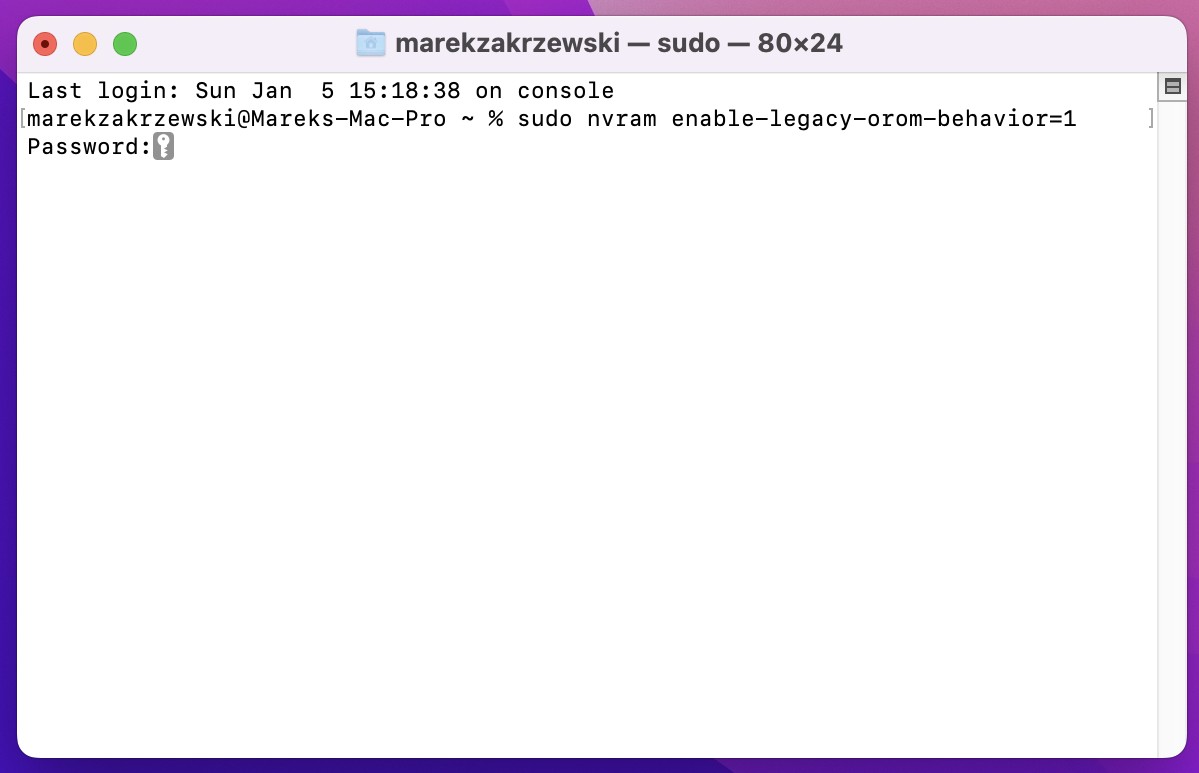

sudo nvram enable-legacy-orom-behavior=1

and press ENTER.

Terminal will ask for password. Type your user password and press ENTER (password won't be shown not even under asterisk). Make sure you have set a password for your current username otherwise it won't work properly.

Step 10

There would be no output from this command. If there is no error everything is fine.

Step 11

Download pure-wranger.sh script: https://github.com/mayankk2308/purge-wrangler/releases/download/6.3.4/purge-wrangler.sh

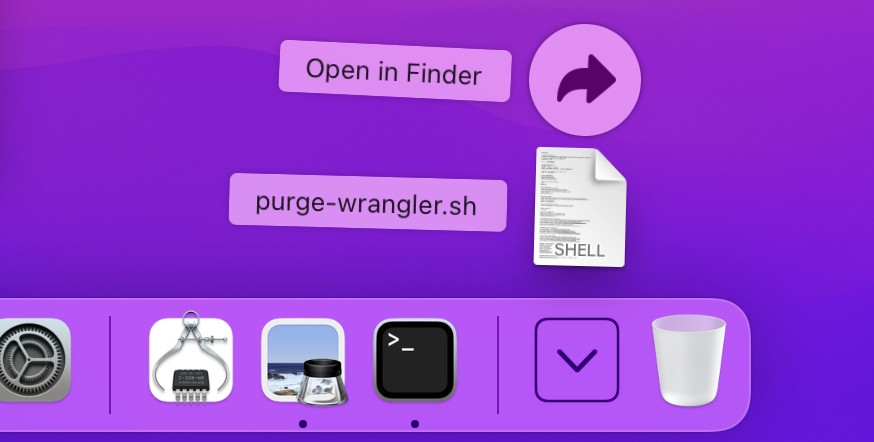

It will be downloaded into Downloads folder in near recycle bin.

Step 12

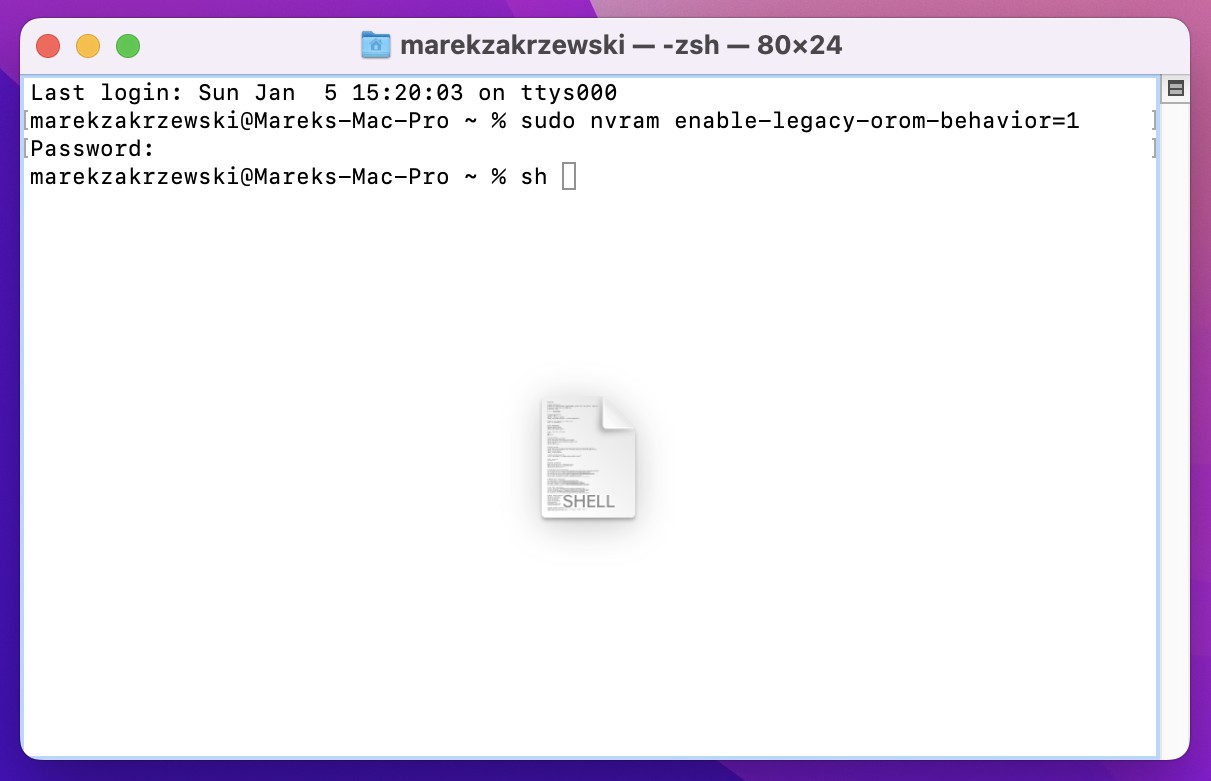

Type sh followed by <space>. Then drag and drop the downloaded purge-wrangler.sh script from Downloads folder over the Terminal and press ENTER.

Step 13

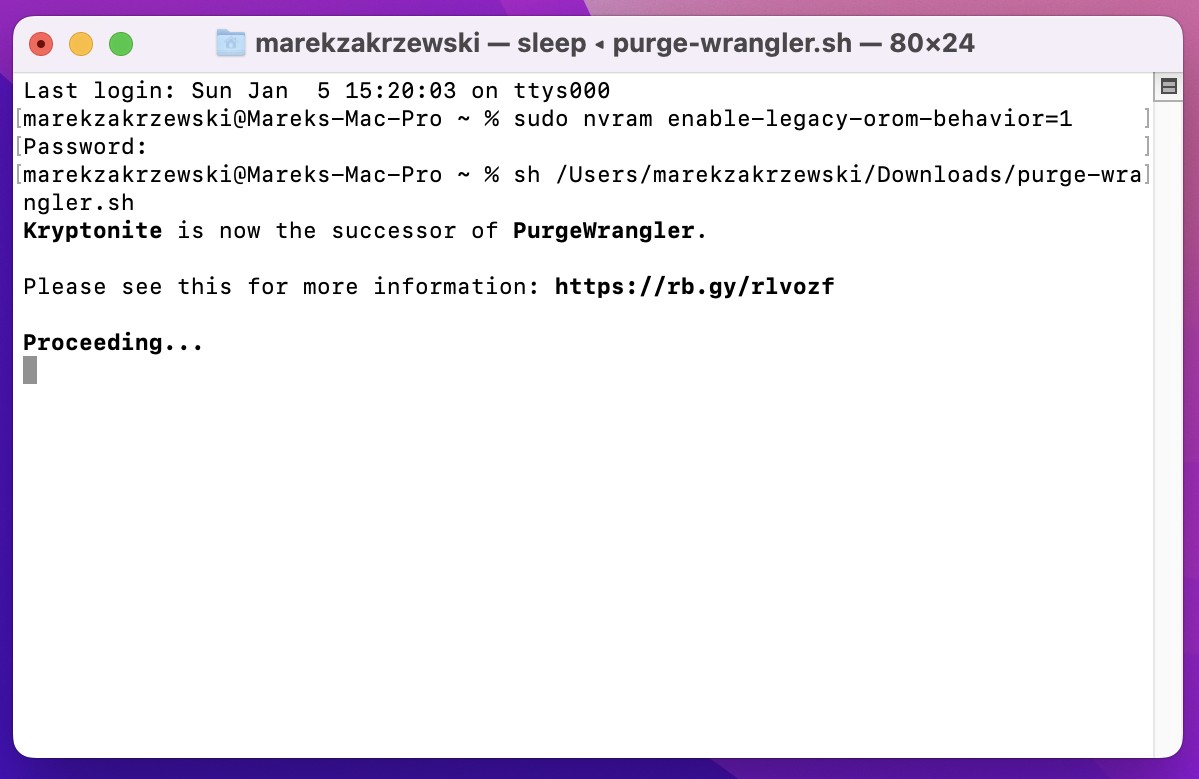

The script will start running. Ignore the warning about successor.

Step 14

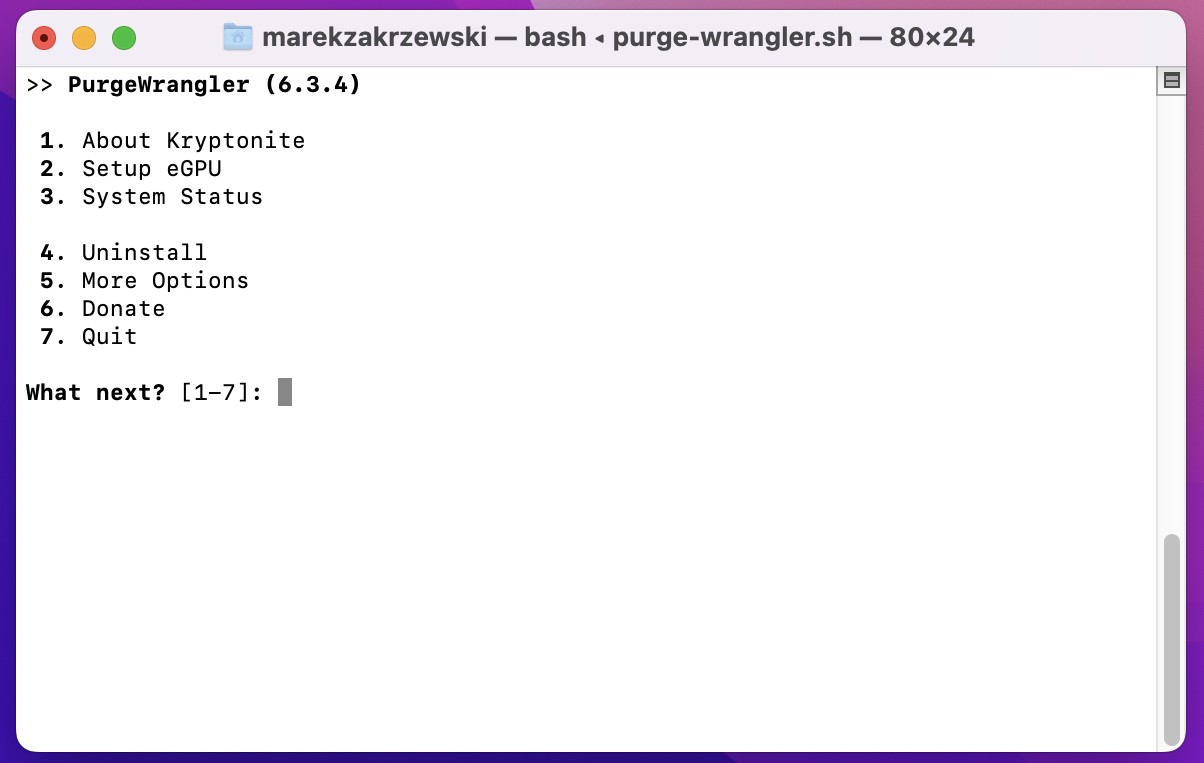

Enter 2 to Setup eGPU.

Step 15

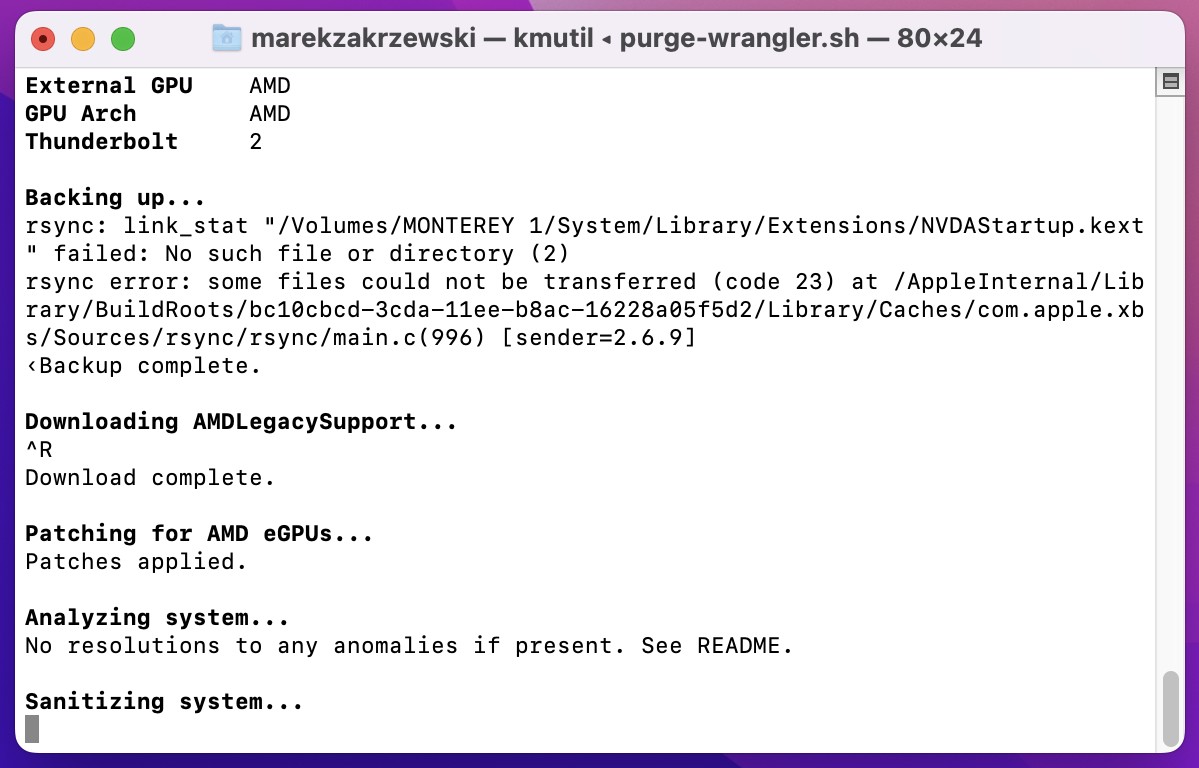

Script will start installing necessary patches and will automatically reboot the system.

These patches will enable Thunderbolt and Thunderbolt 2 AMD eGPU support.

Again please ignore the rsync error related to NVIDIA eGPU.

Step 16

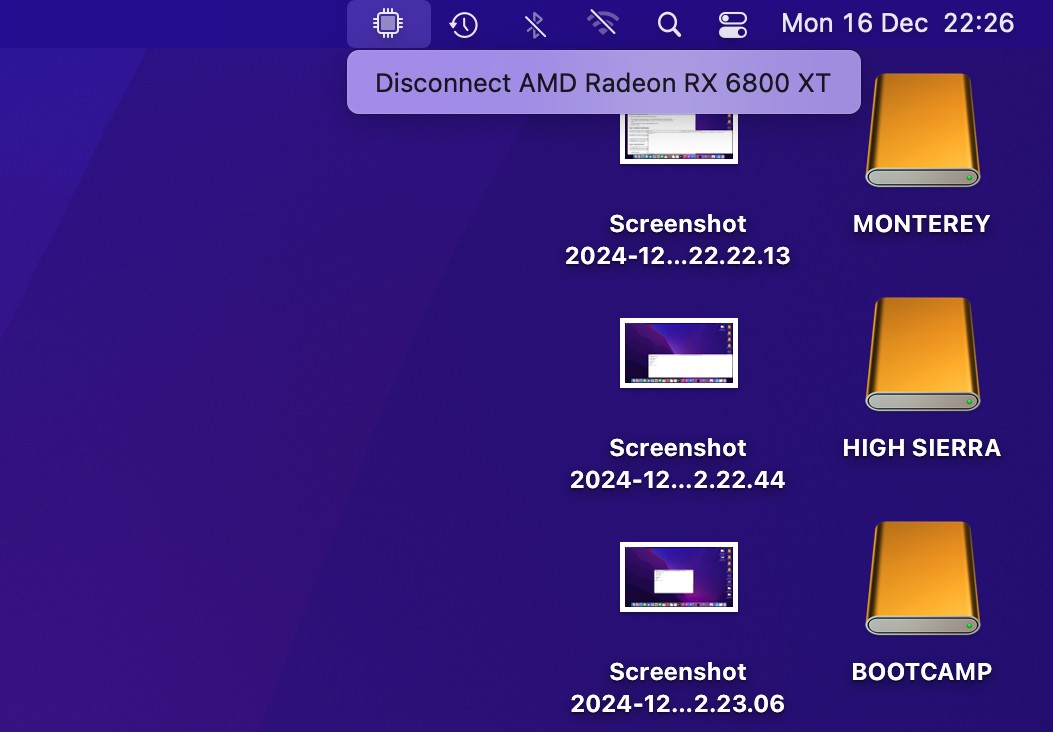

Post reboot you will notice a new icon near the clock.

When you click it it will say e.g. Disconnect AMD Radeon RX 6800XT.

Now it's time to connect the display or displays to your eGPU.

Disconnect the display from the standard AMD FirePro graphics card and connect it to any of your eGPU ports.

If using Apple Studio Display make sure to use WJESOG USB-C to DisplayPort cable (https://www.amazon.com/WJESOG-DisplayPort-Adapter-Converter-Thunderbolt/dp/B0BNX7MS6N) or similar.

Make sure an additional USB-A connector is also connected, so the camera, loudspeakers and microphone inside the display would also work properly.

Step 17

Step 18
