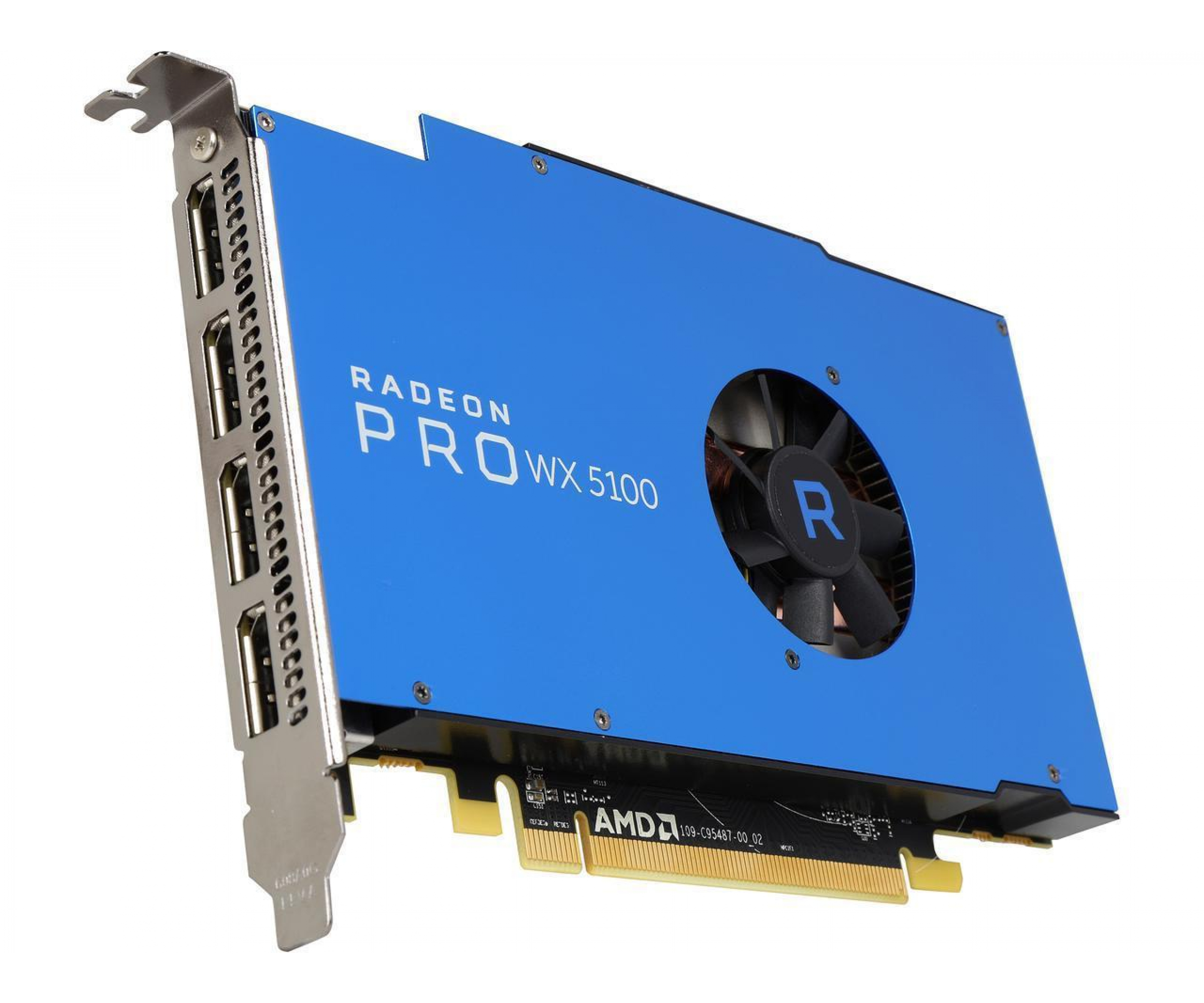

AMD Radeon Pro WX5100 8 GB GDDR5 (reference WX 5100)

€229.00 €279.00

The newest and smallest professional card for Mac Pro. No extra power cables needed.



Works out of the box under High Sierra/Mojave/Catalina/Big Sur/Monterey/Ventura and Sonoma.



System requirements:

- Apple Mac Pro 3,1 (2008), Apple Mac Pro 4,1 (2009) or Mac Pro 5,1 (2010-2012)
- installed macOS 10.13.4 (High Sierra) or newer
- native support by macOS High Sierra, Mojave, Catalina, Big Sur, Monterey and Ventura/Sonoma via patcher, no drivers needed



Key features:

- compatible with macOS and Windows (via BootCamp)
- supports Apple boot screen (gray screen with Apple logo on startup) on all ports (also on 4K displays)
- uses internal Mac Pro power supply
- supports PCI Express 2.0 link under macOS and Windows
- supports four displays simultaneously: 4x DisplayPort 1.4
- supports 4K/5K/8K@60Hz via DisplayPort
- supports Metal, OpenCL and OpenGL in applications and games
- supports sound via DisplayPort under macOS (from macOS 10.14 or above)



Technical specification:

- graphics processor clock: 1086 MHz
- memory speed: 1250 MHz
- amount and type of memory: 8 GB GDDR5
- bus width: 256-bit
- bus: PCI-Express 2.0 x16 (5.0 GT/s)


https://pics.macvidcards.eu/wx5100_8gb_dell/2.jpg

https://pics.macvidcards.eu/wx5100_8gb_dell/3.jpg

https://pics.macvidcards.eu/w5700_8gb_amd/4.jpg

https://pics.macvidcards.eu/rx580_8gb_asus/boot_screen_apple.jpg

https://pics.macvidcards.eu/wx5100_8gb_amd/4.jpg

https://pics.macvidcards.eu/wx5100_8gb_amd/5.jpg

https://pics.macvidcards.eu/wx5100_8gb_amd/6.jpg

https://pics.macvidcards.eu/wx5100_8gb_amd/7.jpg

https://pics.macvidcards.eu/wx5100_8gb_amd/8.jpg

https://pics.macvidcards.eu/wx5100_8gb_amd/9.jpg
Boot screen
  • up to 4K@60Hz via DisplayPort
Condition
  • Used (flashed)
  • 12 months
Package includes
  • Not needed
Specification
  • 4x DisplayPort 1.4
  • up to 4 concurrent displays
  • 1086 MHz
  • 1250 MHz
  • 8 GB GDDR5
  • 256-bit
  • PCI-Express 2.0 x16 (5.0 GT/s)
  • not supported
  • Not required
  • 75 W
  • DisplayPort Audio
  • Metal, OpenCL, OpenGL
System Requirements
  • 3,1 (2008), 4,1 (2009), 5,1 (2010-2012)
  • 10.13.4 (High Sierra) or later, 10.14 (Mojave) or later, 10.15 (Catalina) or later, 11.0.1 (Big Sur) or later, 12.0.1 (Monterey) or later, 13.0 (Ventura) or later, 14.0 (Sonoma) or later
  • Not needed
  • Yes, via Apple BootCamp (also in UEFI mode)
