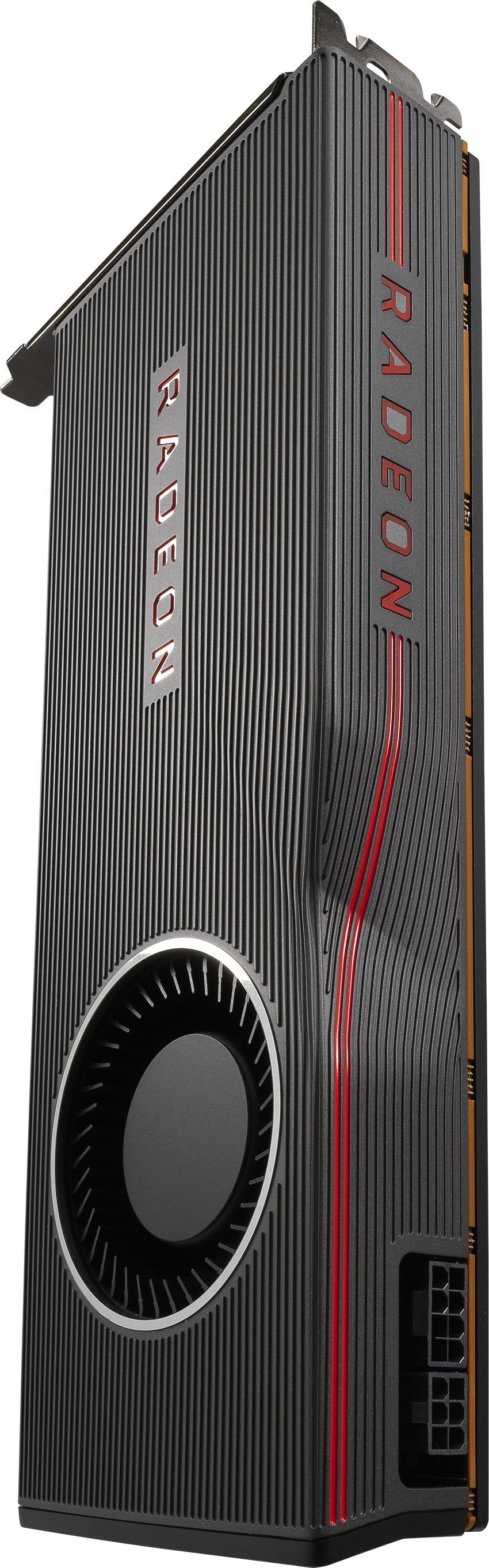

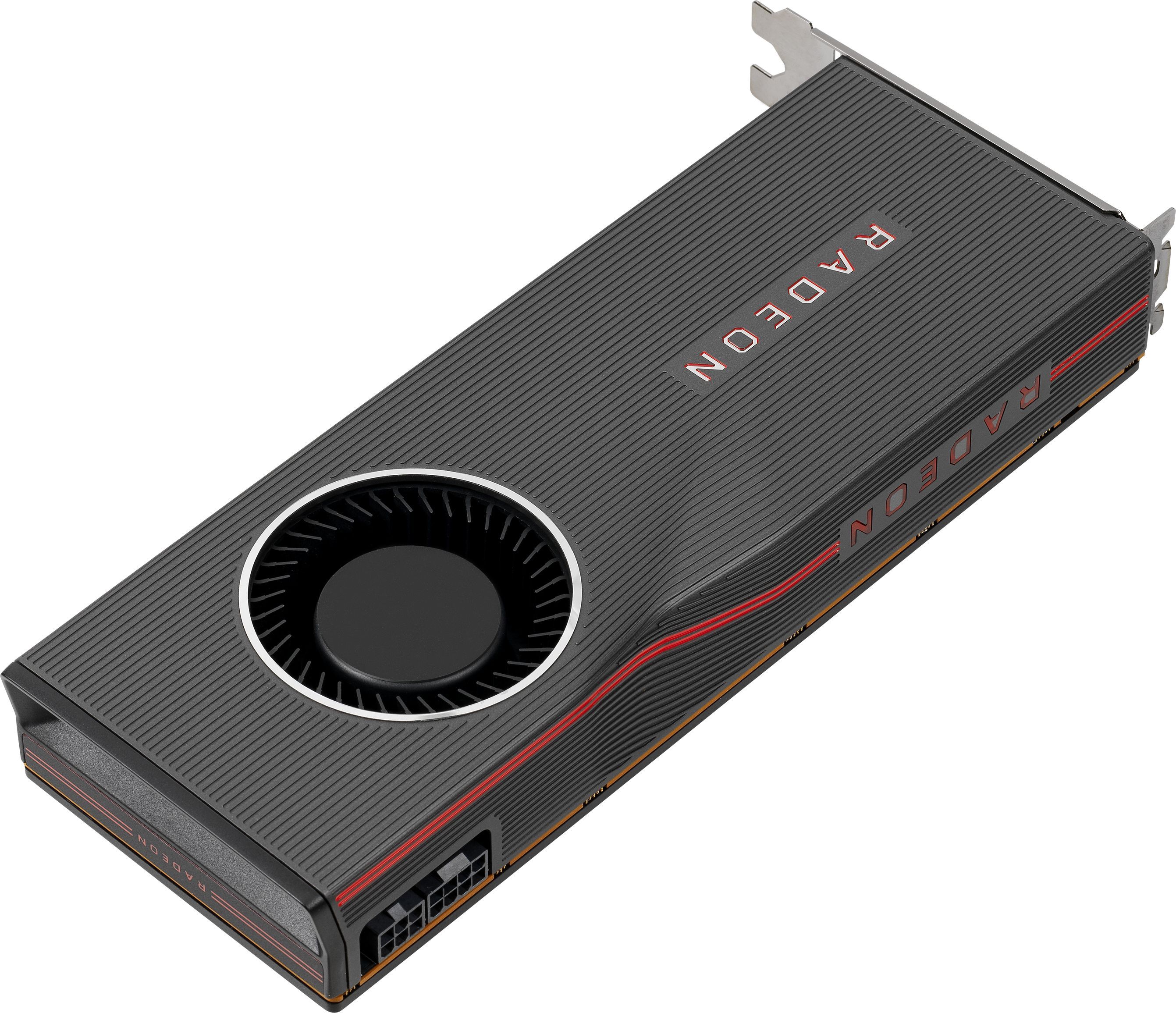

Very rare reference model - just 2-slot wide !
Ultra fast AMD card for Mac Pro 3,1/4,1/5,1 based on Navi chip and GDDR6 memory. Works with macOS Catalina/Big Sur and Monterey.
macOS Catalina 10.15.5 to 10.15.7 users must also run our patch: https://www.macvidcards.eu/installing-macvidcards-patch-for-amd-radeon-rx-5000-w-5000-cards-under-macos-catalina-10-15-5-or-later
System requirements:
- Apple Mac Pro 3,1 (2008), Apple Mac Pro 4,1 (2009) or Apple Mac Pro 5,1 (2010-2012)
- installed macOS 10.15.1 (Catalina) or newer (installed via Dosdude patcher), macOS 10.15.5, 10.15.6 and 10.15.7 also require MacVidCards patch provided with the card, macOS Big Sur and Montery works without additional patches
- native support by macOS Catalina/Big Sur/Monterey, no drivers needed
- no support for macOS Ventura or macOS Sonoma yet
Key features:
- compatible with macOS and Windows (via BootCamp)
- supports Apple boot screen (gray screen with Apple logo on startup) on all ports (also on 4K displays)
- uses internal Mac Pro power supply
- supports PCI Express 2.0 link under macOS and Windows

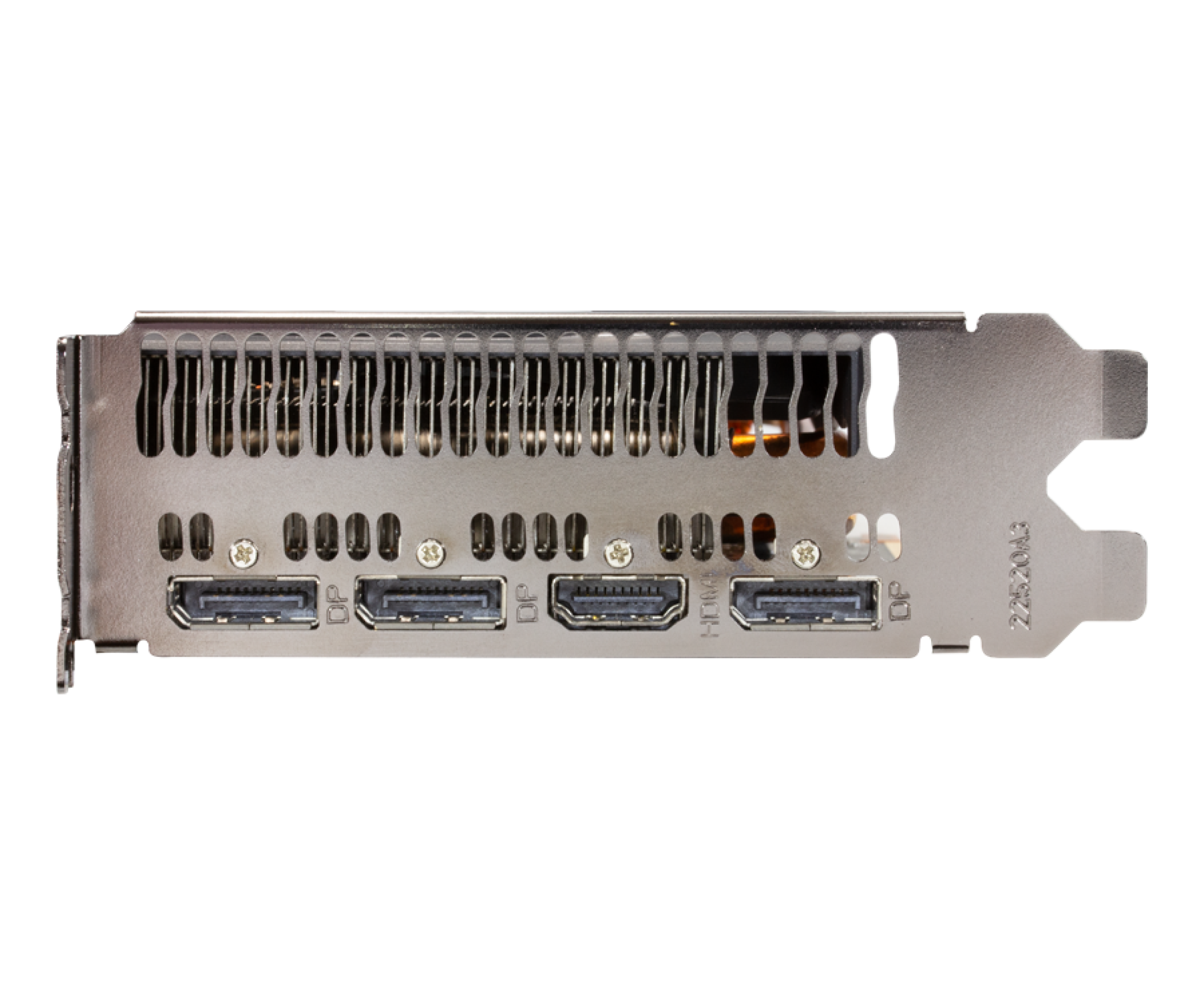

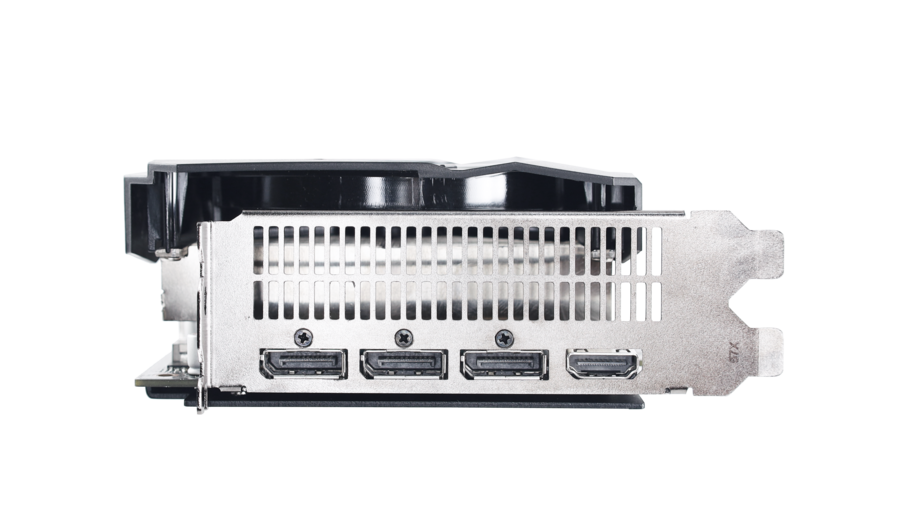

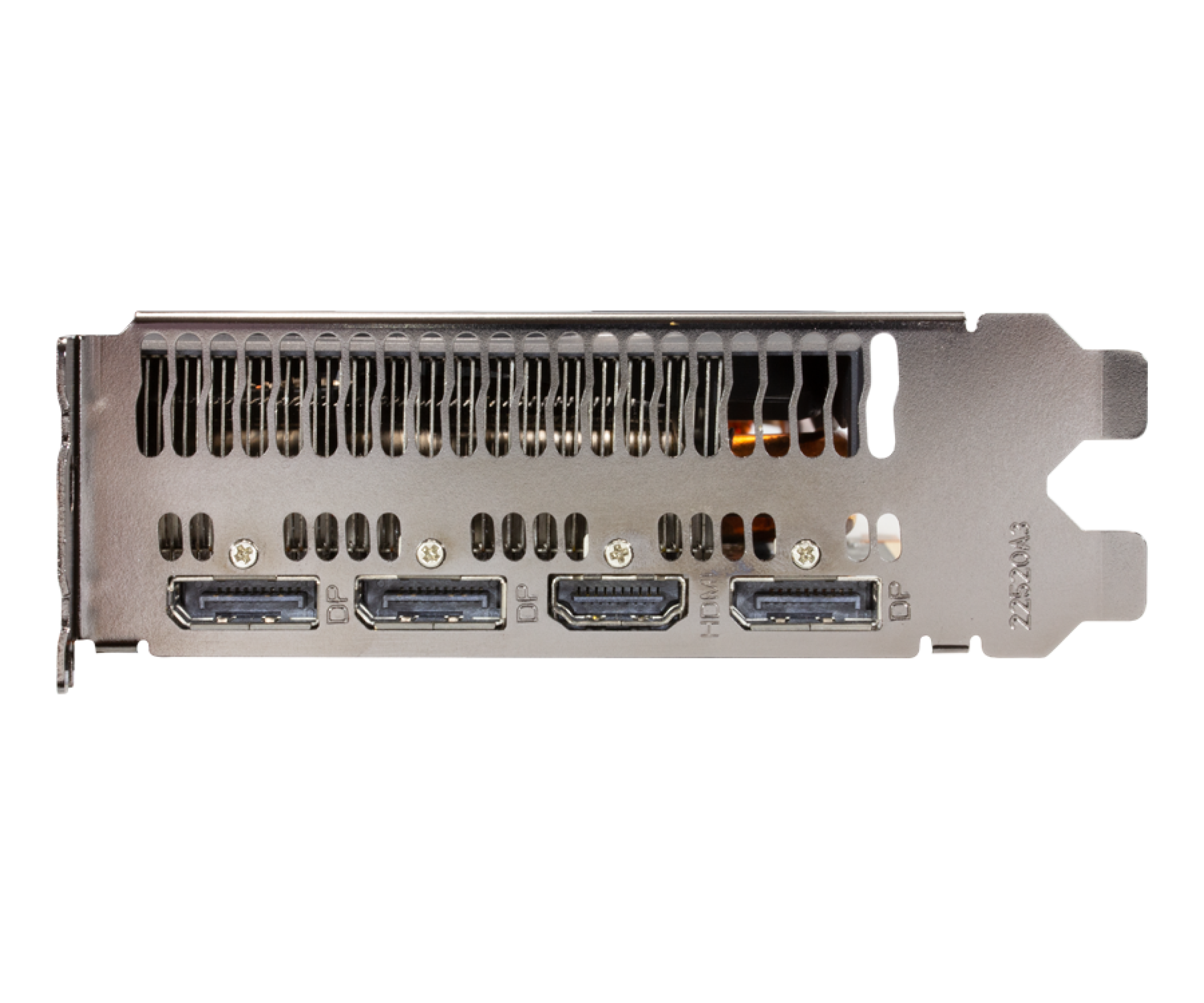

- supports four displays simultaneously: 3x DisplayPort 1.4 + 1x HDMI 1.4 (2.0 under Windows)
- supports 4K@60Hz via DisplayPort or 5K/8K@60Hz via dual DisplayPort port and 4K@30Hz via HDMI port
- supports OpenGL, OpenCL and Metal in applications and games
- allows Windows 8/8.1/10/11 installation in UEFI mode
- supports sound via HDMI and DisplayPorts under macOS
Technical specification:
- graphics processor clock: 1755 MHz + boost 1905 MHz
- memory speed: 1750 MHz
- amount and type of memory: 8 GB GDDR6
- bus width: 256-bit
- bus: PCI-Express 2.0 x16
- TDP: 225W
