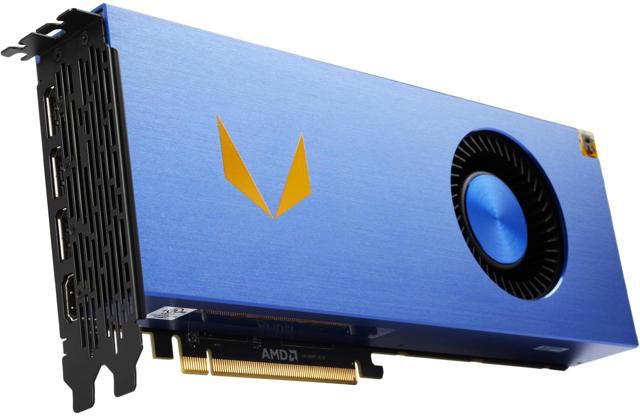

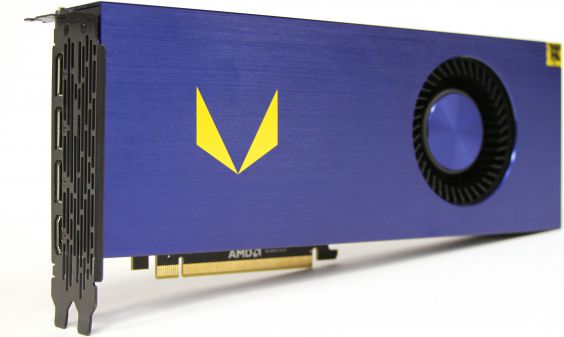

AMD Radeon Vega Frontier Edition 16 GB HBM2 (reference AMD)

€489.00

The fastest card for High Sierra/Mojave/Catalina/Big Sur/Monterey/Ventura/Sonoma/Sequoia and the latest Sequoianow with EFI boot screeen!



It also has an amazing 16 GB HBM2 memory.

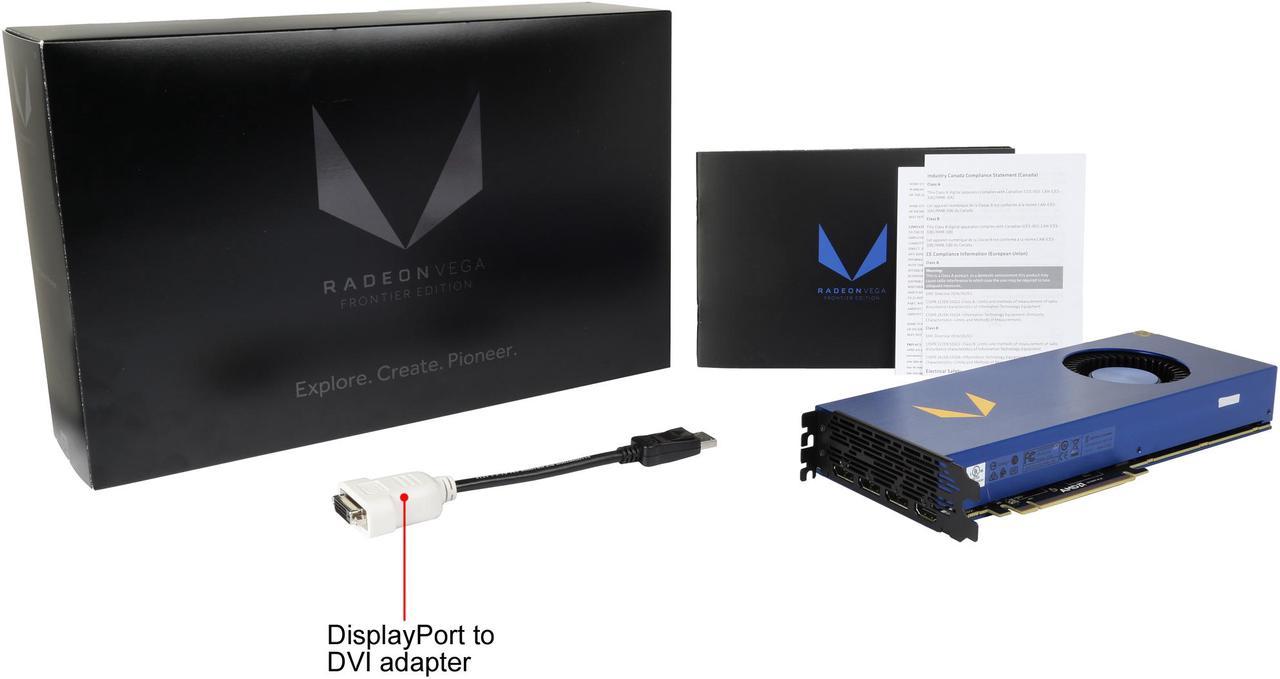

Full BOX edition. Supplied with two sets of power cables for Mac Pro motherboard (one standard for most configurations and one using additional power from SATA port). Also comes with DisplayPort to DVI adapter (resolution up to 1920x1200 pixels).



System requirements:

- Apple Mac Pro 3,1 (2008), Apple Mac Pro 4,1 (2009) or Mac Pro 5,1 (2010-2012)
- installed macOS High Sierra 10.13.4 or newer, macOS Big Sur 11 or later recommended (no fan stop feature on older macOS versions)
- native support by macOS High Sierra, Mojave, Catalina, Big Sur, Monterey and Ventura/Sonoma/Sequoia via patcher, no drivers needed



Key features:

- compatible with macOS and Windows (via BootCamp)
- supports Apple boot screen (gray screen with Apple logo on startup) on HDMI and two upper DisplayPorts (also on 4K displays)
- uses internal Mac Pro power supply
- supports PCI Express 2.0 link under macOS and Windows
- supports four displays simultaneously: 3x DisplayPort 1.4 + 1x HDMI 1.4 (2.0 under Windows)
- supports 4K/5K/8K@60Hz via DisplayPort and 4K@30Hz via HDMI port
- supports Metal, OpenCL and OpenGL in applications and games
- allows Windows 8/8.1/10/11 installation in UEFI mode with resume/standby modes working
- supports sound via HDMI and DisplayPorts under macOS (from macOS 10.14 or above)



Technical specification:

- graphics processor clock: 1600 MHz
- memory speed: 945 MHz
- amount and type of memory: 16 GB HBM 2
- bus width: 2048-bit
- bus: PCI-Express 2.0 x16
- TDP: 300W (in reality just about 225W)



https://pics.macvidcards.eu/vega_frontier_edition_8gb_amd/nowe/2x.jpg

https://pics.macvidcards.eu/vega_frontier_edition_8gb_amd/nowe/3x.jpg

https://pics.macvidcards.eu/rx580_8gb_asus/boot_screen_apple.jpg

https://pics.macvidcards.eu/rx6600xt_8gb_asus/hdmi.jpg

https://pics.macvidcards.eu/vega_frontier_edition_8gb_amd/nowe/4x.jpg

https://pics.macvidcards.eu/vega_frontier_edition_8gb_amd/nowe/5.jpg

https://pics.macvidcards.eu/vega_frontier_edition_8gb_amd/nowe/6.jpg

https://pics.macvidcards.eu/vega_frontier_edition_8gb_amd/nowe/7.jpg

https://pics.macvidcards.eu/vega_frontier_edition_8gb_amd/nowe/8.jpg

https://pics.macvidcards.eu/vega_frontier_edition_8gb_amd/nowe/9.jpg

https://pics.macvidcards.eu/vega_frontier_edition_8gb_amd/frontier_blackmagic.jpg

Great 4K gaming performance in highest details:

https://pics.macvidcards.eu/vega_frontier_edition_8gb_amd/frontier_tomb.jpg

https://pics.macvidcards.eu/vega_frontier_edition_8gb_amd/frontier_3dmark.jpg
Boot screen
  • up to 4K@60Hz via DisplayPort, up to 4K@30Hz via HDMI
Condition
  • Used (flashed)
  • 12 months
Package includes
  • 2x 6-pin Mac Pro PCIe power cable, 6-pin to 8-pin PCIe power adapter, 8-pin to 2x 6-pin power adapter, SATA to 6-pin PCIe power adapter, 2x 8-pin Mac Pro PCIe power cable
Specification
  • 3x DisplayPort 1.4, 1x HDMI 2.0 (1.4 under macOS)
  • up to 4 concurrent displays
  • 1600 MHz
  • 945 MHz
  • 16 GB HBM2
  • 2048-bit
  • PCI-Express 2.0 x16
  • not supported
  • 8-pin + 8-pin
  • 300 W
  • HDMI Audio, DisplayPort Audio
  • Metal, OpenCL, OpenGL
System Requirements
  • 3,1 (2008), 4,1 (2009), 5,1 (2010-2012)
  • 10.13.4 (High Sierra) or later, 10.14 (Mojave) or later, 10.15 (Catalina) or later, 11.1 (Big Sur) or later, 12.0.1 (Monterey) or later, 13.0 (Ventura) or later, 14.0 (Sonoma) or later
  • Not needed
  • Yes, via Apple BootCamp (also in UEFI mode)
